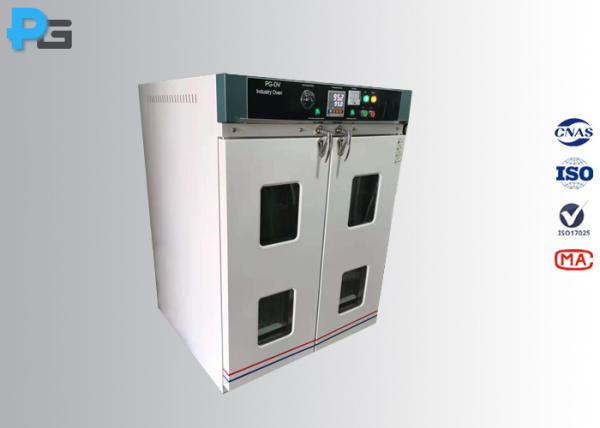

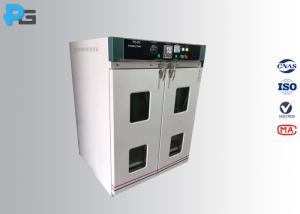

250 Celsius Heated Holding Cabinet Stainless Steel Liner Dimension Customized

  • 1
  • 2

Brand Name : PEGO Group

Model Number : PG-OV

Certification : Third-Lab Calibration Certificate

Place of Origin : China

MOQ : 1 set

Price : Negotiation

Payment Terms : T/T, Western Union, MoneyGram

Supply Ability : 50 sets/month

Delivery Time : 15 working days

Packaging Details : woodencase

Material : stainless steel liner, painted steel shell

Temperature range : RT＋10℃~250℃

Working dimension : 700*600*1000 (customized)

heat preservation : Ultra-fine thermal insulation cotton

Working Power : 380V/50Hz (3 phases 5 wires)

Accessories : Shelf*2

Contact Now

Heating Cabinet up to 250 Celsius with Stainless steel Liner, Dimension can be Customized

1. Introduction of Heating Cabinet:

The heating cabinet (oven) is widely applied to the fields of motor, glass, ceramic, PC board, coating and etc. for the purpose of drying, preheat and finalize the design. The oven is consisted by working room, air supply device, Japanese control system, and protection system. Work with the ball pressure test apparatus can do the heating resistance test.

2. Parameter of Heating Cabinet:

Working size 700mm(L)*600mm(D)*1000mm (H)/420L
Outer Size 600mm(L)*700mm(D)*1100mm (H)
Temperature range RT＋10℃~250℃
Temperature fluctuation ±1℃
Temperature uniformity ≤±2℃
Temperature deviation ±2℃
Material

Liner: stainless steel

Outer shell: A3 steel plate

heat preservation: Ultra-fine thermal insulation cotton

Heating: electrical heater

Observe window: glass
Recycle system Single cycle, using horizontal wind, with timing function, timing range: 0-99h
Temperature control solid state control
Working power AC 380V/50Hz (3 phases), 8KW
Accessories Shelf*2
